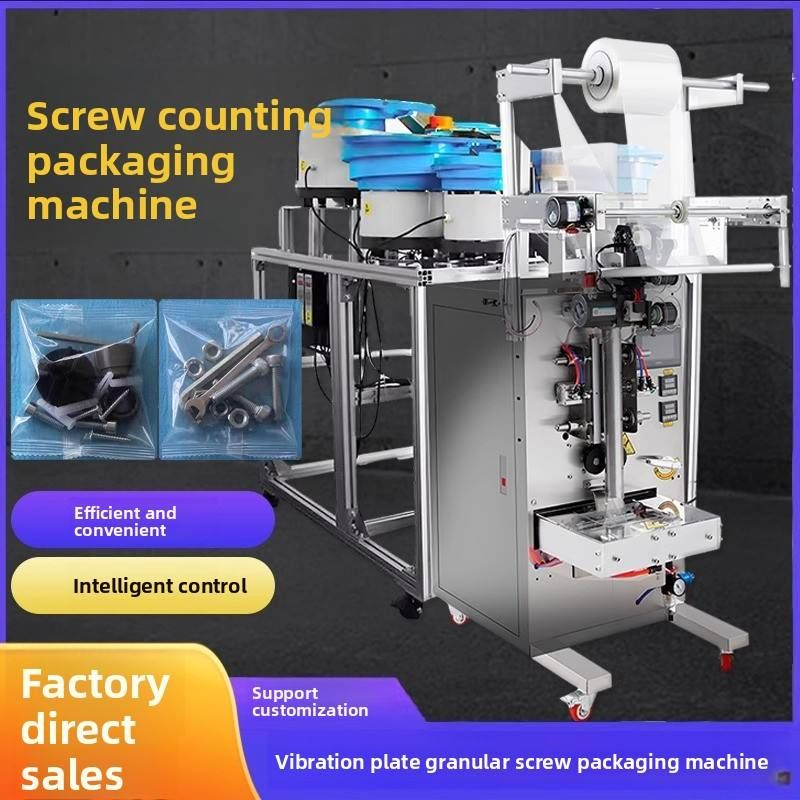

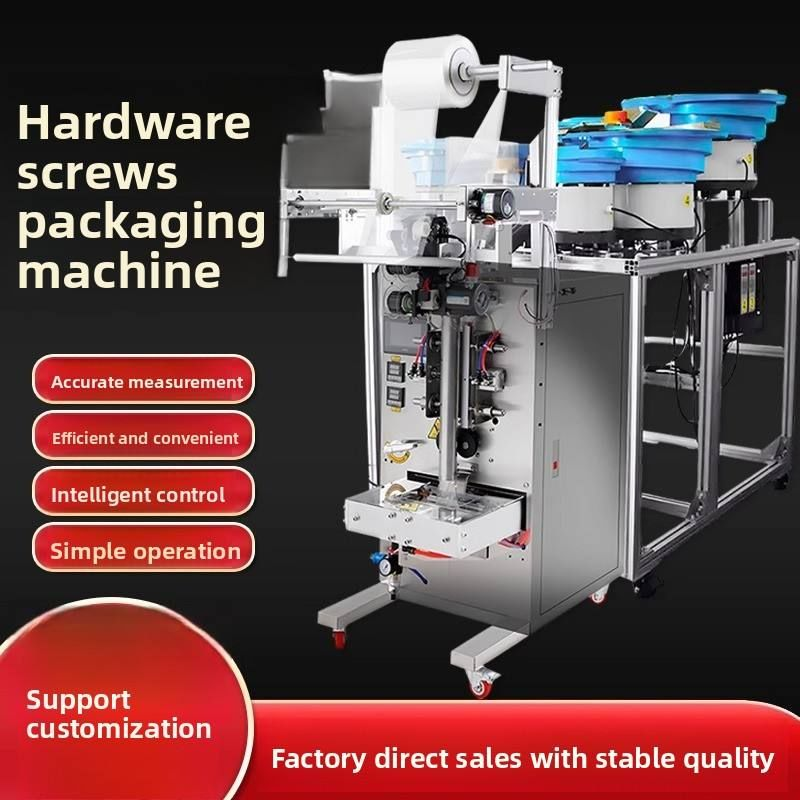

Product Catalog: Automatic Multi-Function Counting & Packaging Machine
1. Product Overview
- Model: Multi-Function Counting & Packaging Machine
- Design: Compact vertical structure with mobility wheels for easy relocation
- Material: High-quality stainless steel & durable metal frame

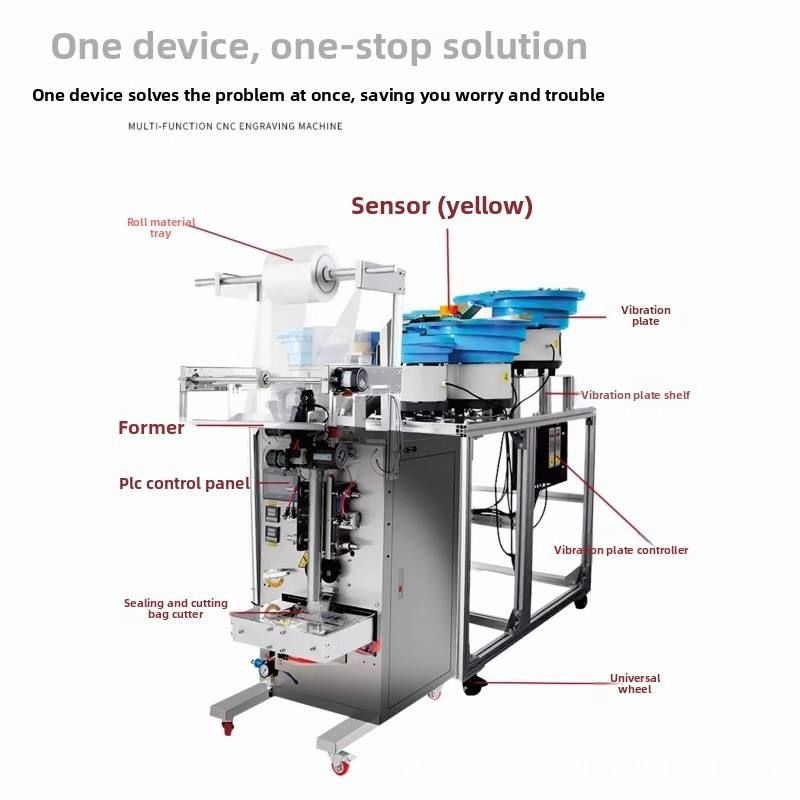

Key Components:
- 4 blue vibration plates for automated sorting and feeding
- PLC control panel with digital display for intelligent operation
- Roll material tray, forming system, and heat-sealing/cutting mechanism
- Fiber optic counting system for precision
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | 220V (customizable to 110V) |
| Power | 3000W |
| Hertz | 50Hz/60Hz (adjustable) |
| Bag Dimensions | Width: 50–320mm / Length: 10–220mm |
| Counting Method | Fiber optic sensor |
| Control System | Digital display + computerized PLC |
3. Component Dimensions
- 8 Plates: 50 × 50 × 50mm (4 pieces)
- Platform: 220 × 220 × 120mm
- Shelf: 220 × 120 × 120mm
- Packaging Machine: 50 × 50 × 90mm
4. Key Features
- ✅ High Efficiency: Automated vibration plates enable rapid sorting and packaging
- ✅ Precision Counting: Fiber optic technology ensures accurate item counts
- ✅ Versatile Packaging: Supports bags of varying sizes (50–320mm width, 10–220mm length)
- ✅ User-Friendly: Simple operation via PLC interface; customizable settings
- ✅ Wide Applicability: Ideal for screws, nuts, hardware, plastic parts, seals, springs, confectionery (e.g., nougat), and small accessories
5. Applications
Packages diverse items such as:
- Hardware: Screws, nuts, springs, wrenches
- Industrial Parts: Seals, plastic components
- Consumer Goods: LEGO bricks, jewelry, snacks (e.g., nougat)
6. Quality Assurance
- Factory-direct sales with stable performance
- Support for customization based on client needs
For inquiries, please contact [Your Contact Information]
