| Parameter Category | Specification Details |
|---|---|
| Power Supply | 220V, 50Hz |
| Packaging Speed | 10 - 20 bags/min (depending on material and specification) |
| Machine Dimensions | 100cm (L) 90cm (W) 1945cm (H) |
| Machine Weight | 260 kg |
| Hopper Dimensions | 85cm 85cm 85cm |
| Packaging Material | Powder |
| Dosing Method | Auger (Screw) Dosing |
| Control System | PLC + Touch Screen (Chinese/English Interface) |
| Filling Type | Bag Packaging |
| Drive Motor | Servo Motor |
| Spiral Lifter | Material: 201 Stainless Steel, Diameter: 114mm, Detachable Screw, Hopper with Vibration Motor |

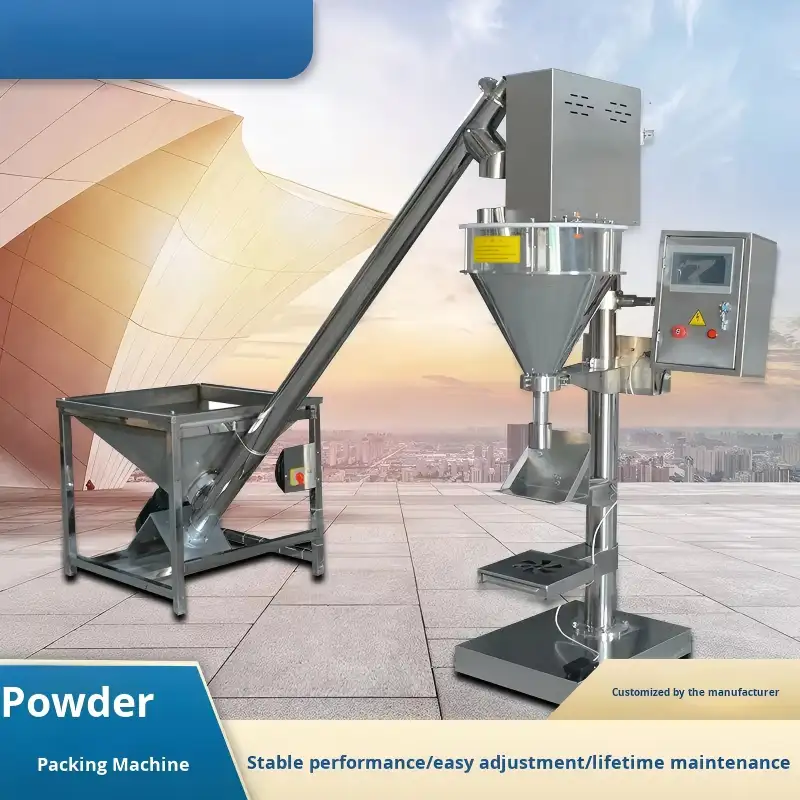

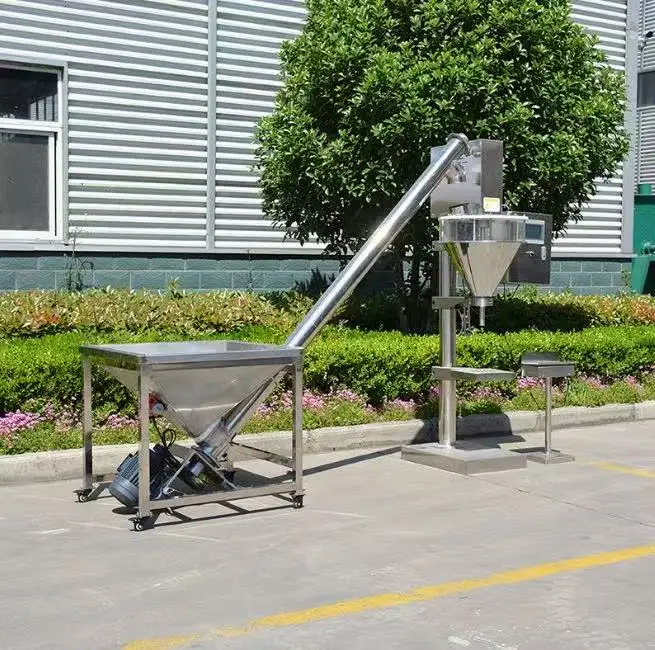

The machine features state-of-the-art control via a user-friendly PLC and an intuitive touchscreen interface, which supports both Chinese and English languages. This allows for quick changeovers and easy parameter adjustments for different packaging specifications. For enhanced automation, it comes equipped with a integrated spiral lifting conveyor, crafted from 201 stainless steel. The detachable screw and a vibratory motor on the 85cm³ hopper ensure smooth, bridgeless material flow. With compact dimensions (100cm90cm1945cm) and a robust 260kg construction, this all-in-one solution is designed for precision, speed, and effortless integration into modern production environments for creating small sachets of products like milk powder, protein supplements, or additives.
