Industrial Equipment Specifications
(Likely for a cutting machine or similar processing equipment)
Core Parameter Comparison
1. 220V Models
| Parameter | 230 Model | 230A Model | 330 Model | 430 Model |
|---|---|---|---|---|
| Dimensions | 50 37 51CM | 52 31 55CM | 68 36 73CM | 72 48 92CM |
| Gross Weight | 24KG | 24KG | 57KG | 85KG |
| Motor | Copper wire motor | DC reduction copper wire motor | 6-level copper wire motor | 6-level copper wire motor |
| Output Power | 370W | 300W | 1500W | 1500W |

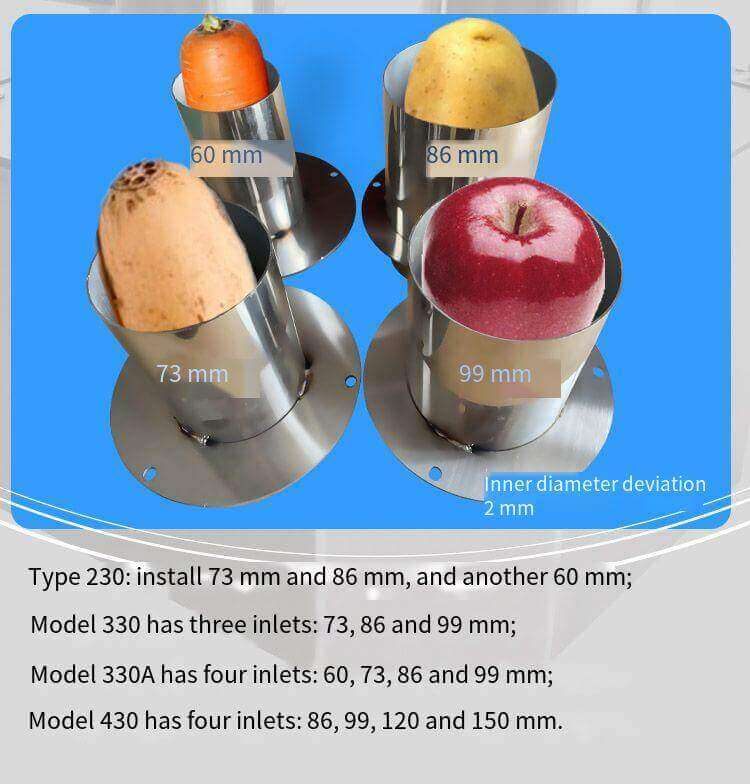

| Max Inlet Diameter | 86MM | 86MM | 99MM | 150MM |
| Continuous Processing Time | 30 minutes | 3 hours | 6 hours | 6 hours |
| Slice Thickness Range | 1.3-6MM | 1.3-6MM | 2-6MM | 2-12MM |
2. 380V Models
Industrial Cutting Machine Specifications
Technical parameters for 380V industrial models
| Parameter | 330 Model | 330A Model | 430 Model |
|---|---|---|---|

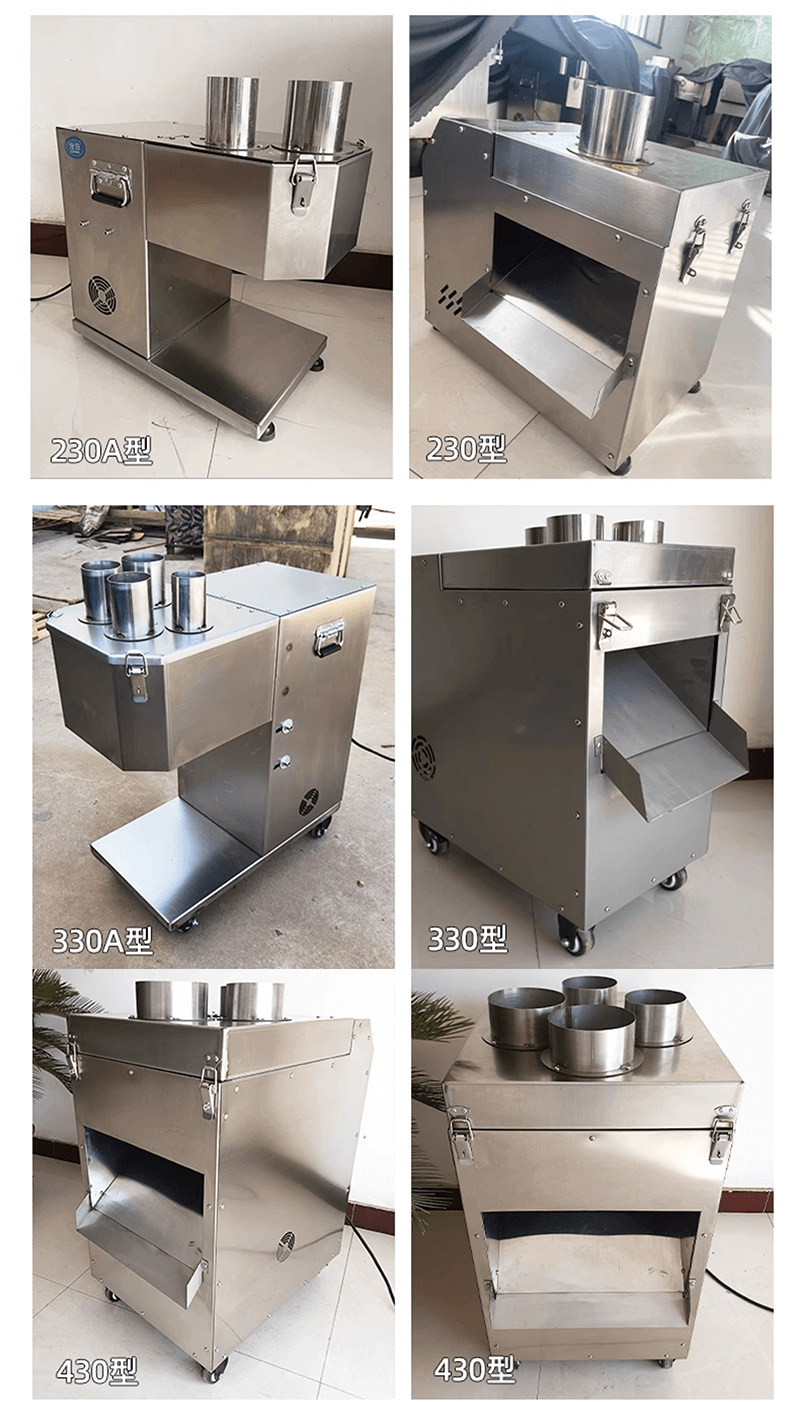

| Appearance | [Product Illustration] | [Product Illustration] | [Product Illustration] |
| Dimensions (L×W×H) | 68×36×73 cm | 72×38×87 cm | 72×48×92 cm |
| Gross Weight | 70 kg | 71 kg | 87 kg |
| Motor Type | 6-level copper wire | Standard copper wire reduction | Standard copper wire with frequency converter speed control |
| Output Power | 1500 W | 1500 W | 1500 W |
| Max. Inlet Diameter | 99 mm | 99 mm | 150 mm |
| Continuous Operation Time | 8 hours | 10 hours | 10 hours |
| Slice Thickness Range | 2-6 mm | 2-6 mm | 2-12 mm |

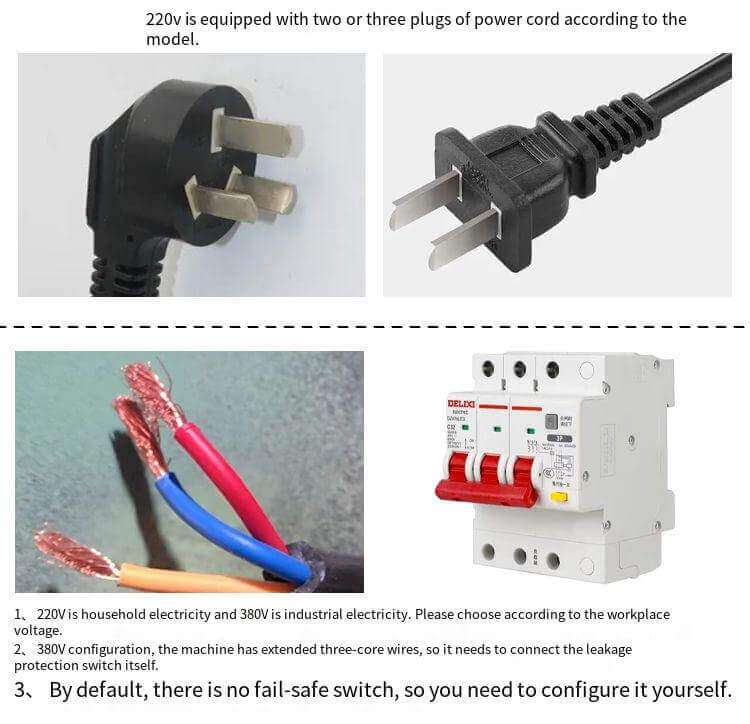

Important Notice: 220V is residential electricity, 380V is industrial electricity. Please select the machine according to the voltage available at your factory. If you don't have 380V power supply, a 380V machine will not work.
Key Features Summary
- 430 Model offers the largest processing capacity with maximum inlet diameter of 150mm
- 330A and 430 Models support longer continuous operation (10 hours)
- 430 Model features frequency converter speed control for better performance
- All models require 380V industrial power supply
Industrial Equipment Specifications Sheet | For detailed technical support, please contact our sales team This specification lists 330, 330A and 430 models, but complete parameters are not fully visible in the image. Typically, 380V models are suitable for industrial environments and may offer stronger or more stable performance.
Key Takeaways
- Larger model numbers indicate better performance: From 230 to 430 models, the equipment's size, weight, power and processing capacity all increase significantly.
- Key differences: The 430 model has the largest inlet diameter (150mm) and widest slice thickness range (2-12mm), representing the strongest processing capability.
- Special model: The 230A model, while having slightly lower power than the 230 model, features a "DC reduction copper wire motor" and offers continuous processing time of up to 3 hours, far exceeding the 230 model's 30 minutes, making it suitable for scenarios requiring prolonged continuous operation.
